Top Mount 2
Top Mount 2

Price : Rs. 10,800.00
( Per piece)


  • Description >


    Top Mount 1.5"

    FIBERGLASS TOP MOUNT SAND FILTERS
    Fiberglass Sand Filters are constructed by the latest Engineering Technology. The improvement of Flow ability provides an Ultra-pure water filtration. The fiberglass winding design allows the filter to have extra strength and resistance to chemical and corrosives. Fiberglass Sand Filters are the most recommendable equipment for the application of swimming pool, aquiculture industrial water treatment.

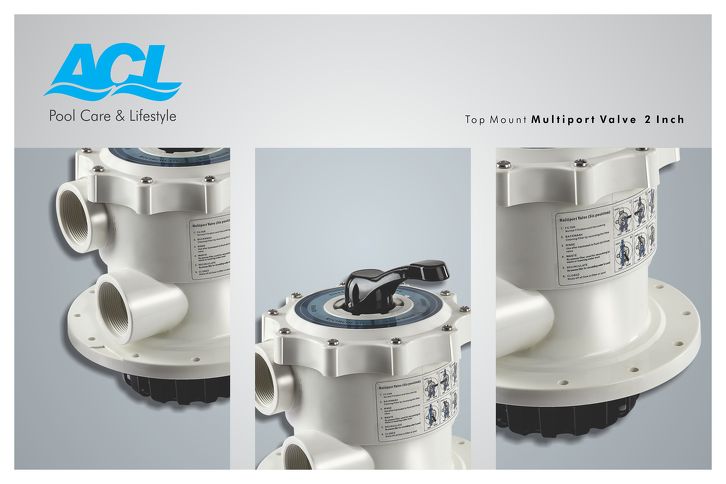

    MULTIPORT VALVE (SIX POSITION)
    FILTER (Normal Filtration & Vacuuming). BACKWASH (Cleaning Filter by reversing the flow). RINSE (Use after backwash to flush dirt from valve). WASTE (By-passes filter, used for vacuuming to waste or lowering water level. RECIRCULATE (By-passes filter for circulating water to pool. CLOSED (Shuts off all flow to filter or pool)

    FIBERGLASS TOP-MOUNT SAND FILTERS

    Model No.

    Tank Dia

    B

    (mm)

    Height

    A

    (mm)

    Valve Post

    Size

    (mm)

    Filter Area

    (m2)

    Silica Sand

    (kgs)

    Design Flow

    (LPH)

    L16

    400

    750

    40

    0.13

    30

    6300

    L18

    450

    800

    40

    0.16

    40

    7980

    L21

    550

    850

    40

    0.22

    85

    11520

    L25

    650

    970

    40

    0.30

    155

    16200

    L28

    700

    1080

    40

    0.40

    185

    19200

    L32

    800

    1180

    50

    0.50

    210

    25200

    L36

    900

    1280

    50

    0.64

    310

    30000

    L70

    1000

    1380

    50

    0.79

    410

    33000

    L44

    1100

    1480

    50

    0.98

    460

    37800

    L48

    1200

    1580

    50

    1.13

    560

    42000
